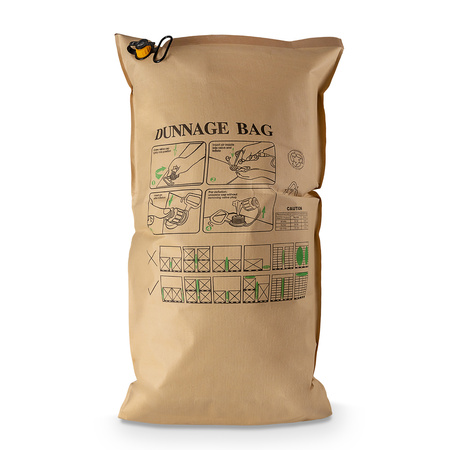

Paper Dunnage Bag BDB-1014 100x140 cm

Stowage Bag for Cargo Protection BDB1014

The durable stowage bag is designed to secure shipments during transport. It is an inexpensive and extremely effective way to safely transport cargo. Air bags are easy to use. The time required to inflate them is only a few dozen seconds.

Why Choose Stowage Bags?

1. Low Cost
Thanks to the low price of the bags and their negligible weight, you will effectively reduce transport costs. Moreover, the bags can be reused.

2. Environmentally Friendly
The durable materials used in the production of the bags allow for multiple uses and are also recyclable.

3. Effective Cargo Protection
The large surface area of the stowage bags perfectly distributes the forces acting on the transported products.
They effectively absorb vibrations, protect against shifting parcels, and prevent tipping over.

4. Storage
Before the air bag is inflated, it is flat and light, which allows for convenient storage.

5. Easy to Use
To inflate the packages, a regular ball pump or a compressor with the appropriate nozzle is enough.

6. Wide Range of Sizes
There are 22 size combinations available for the bags – thanks to this, it is possible to secure cargos of various dimensions. The smallest bag measures 50x100cm, and the largest is as big as 120x240cm!

Application of Stowage Bags

The safety of the transported cargo is one of the key issues in transport. Damage to the entrusted goods may result in the route no longer being profitable or even expose the company to financial losses!
Stowage bags are an excellent option for protecting packages transported in vans, trailers, containers, trains, etc. The bags should be placed in the empty spaces and then inflated.
If properly used, the bags:
- fill empty spaces
- prevent packages from shifting in the cargo area
- protect against tipping over (e.g. refrigerators)
- fill the gaps between goods, thus preventing damage from impact

Properties of stowage bags:
- A structure that allows perfect fitting to the objects placed next to each other
- Made of high-quality raw materials
- Reusable (with the possibility of inflating and deflating)
- When not inflated, they take up little space
- Resistant to moisture and weather conditions
- An ideal solution for securing cargo during transport
- Can be inflated using a hand pump or a compressor with a dedicated nozzle
- Possesses excellent cushioning properties
- Environmentally friendly product, reusable or recyclable
- Resistant to punctures
- Material: outer layer - packaging paper laminated on PE fabric, 70g/m2; inner layer - multilayer co-extruded PA+PE film with a special formula, the thickness of the coextruded film is 75um.
- Height: 1400mm
- Width: 1000mm
- Working pressure: 20kPa / 0.2 bar / 2.8 PSI
- Maximum pressure: 3.0 PSI
- Maximum gap size capable of being filled: 20cm
- Applicable for vans, trailers, containers, warehouses, sea, air and rail transport.

Wide Range of Sizes

The choice of the appropriate bag size for the cargo is key to its safety. In the table above, 22 possible combinations of bag sizes are highlighted in blue.

Convenient Inflation System for the Stowage Bag

Thanks to the use of the new Inflate & Deflate system, the bag can be easily inflated and deflated when needed. The valve is equipped with a stopper that prevents air from escaping on its own. Additionally, a cap provides extra protection, ensuring the set is airtight. Another advantage is the built-in handle, which makes it easier to hold the bag during inflation. After transport, the air can quickly be released by unscrewing the cap, and then the bag can be reused if necessary!

Inflating the bag is just a few simple steps:
1. Remove the black safety cap
2. Attach the appropriate nozzle to your pump or compressor
3. Grab the handle, place the nozzle on the valve, and inflate the bag
4. The air in the bag can be released by unscrewing the cap.

How to Use Stowage Bags?

For the bags to perform their function, they must be arranged in relation to the transported cargo. The diagram above shows examples of poor and proper usage of the bags. There is no one-size-fits-all rule, and each transport requires an individual approach and the use of different solutions.

Our offer also includes bags dedicated to other items and objects.
It is also possible to produce bags tailored to your product according to depth, length, height or
height and diameter.
