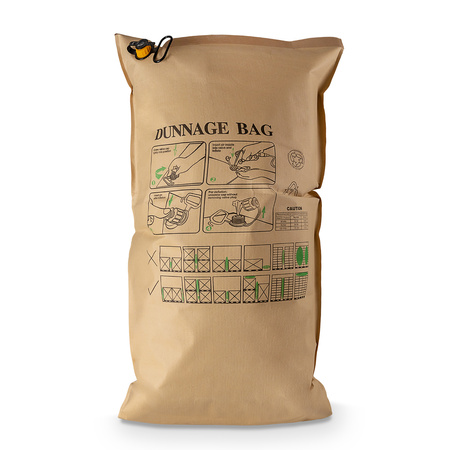

Paper Dunnage Bag BDB-1012 100x120 cm

Air Bags for Cargo Protection BDB1012

The durable air bag is used to secure shipments during transport. It is an inexpensive and highly effective way of safely transporting cargo. The inflatable bags are easy to use. The time needed for inflation is only a few dozen seconds.

Why Choose Air Bags?

1. Low cost
Thanks to the low price of the bags and their negligible weight, you will effectively reduce transport costs. Moreover, the bags can be reused.

2. Environmentally friendly
The durable materials used in the production of the bags allow for their repeated use and are also recyclable.

3. Effective cargo protection
The large surface of the air bags perfectly distributes the forces acting on the transported products.
They effectively dampen vibrations, protect against the shifting of packages, and prevent overturning.

4. Storage
Before the air bag is inflated, it is flat and light, which makes for convenient storage.

5. Easy to use
For inflating the packaging, a simple ball pump or a compressor with an appropriate nozzle is sufficient.

6. Wide range of sizes
There are 22 size combinations available for the bags – making it possible to secure cargo of various dimensions. The smallest bag measures: 50x100cm, and the largest up to 120x240cm!

Applications for Air Bags

The safety of the cargo being transported is one of the key issues in transport. Damage to the entrusted goods may result in the route no longer being profitable or even expose the company to financial losses!
Air bags are an excellent option that works well in protecting packages transported in vans, trailers, containers, trains, etc. The air bags should be placed in the empty spaces and then inflated.
Properly used bags:
- fill empty spaces
- prevent packages from shifting around the cargo area
- protect against overturning (e.g. refrigerators)
- fill gaps between goods, thereby preventing them from colliding with each other

Properties of air bags:
- structure that allows ideal adaptation to adjacent objects
- made of high-quality raw materials
- reusable (capable of being inflated and deflated)
- when not inflated, they take up little space
- resistance to moisture and weather conditions
- an ideal solution for securing cargo during transport
- can be inflated with a hand pump or a compressor with a dedicated nozzle
- has excellent cushioning properties
- environmentally friendly product, reusable or recyclable
- puncture resistant
- material: outer layer - package paper laminated on PE fabric, weight 70g/m2; inner multi-layer co-extruded foil PA+PE with a special formula, the thickness of the co-extruded foil is 75um.
- height: 1200mm
- width: 1000mm
- working pressure: 20kPa / 0.2 bar / 2.8 PSI
- maximum pressure 3.0 PSI
- maximum gap size that can be filled: 20cm
- used in vans, trailers, containers, warehouses, sea, air, and rail transport.

Wide Range of Sizes

Choosing the appropriate bag size for cargo is key to its safety. In the table above, 22 possible bag size combinations are highlighted in blue.

Convenient Air Bag Inflation System

Thanks to the use of the new Inflate & Deflate system, the bag can be easily inflated and deflated when needed. The valve is equipped with a stopper that prevents the air from escaping automatically. An additional protection is the plug that guarantees the set's tightness. Another plus is the attached handle, which facilitates holding the air bag during inflation. After the transport, the air can be quickly released by unscrewing the stopper, and then the bag can be used again if required!

Inflating the bag is just a few simple steps:
1. Remove the black safety plug
2. Attach the appropriate nozzle to a pump or compressor
3. Grab the handle, place the nozzle on the valve, and inflate the bag
4. The air from the bag can be released by unscrewing the stopper.

How to Use Air Bags?

For the air bags to fulfill their purpose, they must be arranged relative to the cargo being transported. In the diagram above, you can see examples of improper and proper use of the air bags. There is no golden rule, and each transport requires an individual approach and the application of various solutions.

Our offer also includes bags dedicated to other objects and items.
It is also possible to produce bags tailored to your product according to depth, length, height or
height and diameter.

Declaration of conformity: https://spacetronik.eu/katalogi/banery/deklaracja-zgodnosci-worki-sztauerskie.pdf
