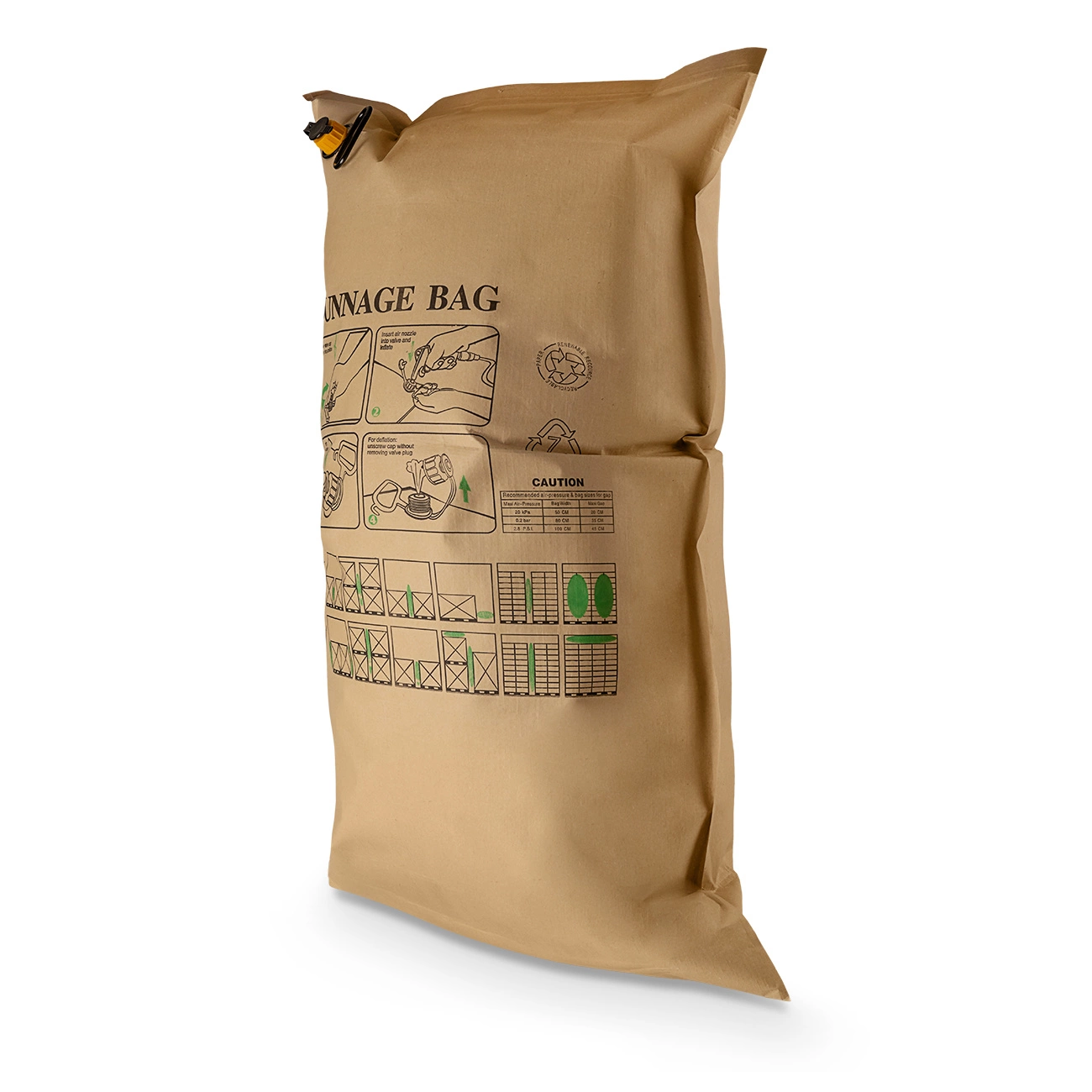

Paper Dunnage Bag BDB-0816 80x160 cm

Staufbag for cargo protection BDB0816

The durable staufbag is used to secure shipments during transport. It is an inexpensive and highly effective way to safely transport cargo. Air bags are easy to use. The time required to inflate them is only a few dozen seconds.

Why Choose Staufbags?

1. Low cost
Thanks to the low price of the bags and their negligible weight, you will effectively reduce transportation costs. In addition, the bags can be reused.

2. Environmentally friendly
The durable materials used in the production of the bags allow for multiple uses and are also recyclable.

3. Effective cargo protection
The large surface area of the staufbags perfectly distributes the forces acting on the transported products.
They effectively dampen vibrations, protect against packages shifting, and prevent overturning.

4. Storage
Before an air bag is inflated, it is flat and light, which allows for convenient storage.

5. Easy to use
To inflate the packaging, a regular ball pump or a compressor with the appropriate nozzle is sufficient.

6. Wide range of sizes
There are 22 possible combinations of bag sizes available – thanks to this, you can secure cargo of various dimensions. The smallest bag is 50x100cm, and the largest is as big as 120x240cm!

Applications for Staufbags

The safety of the transported cargo is one of the key issues in transportation. Damage to the entrusted goods may result in a transport route becoming unprofitable or even cause the company financial losses!
Staufbags are an excellent option for protecting packages transported in vans, trailers, containers, trains, etc. The air bags should be placed in empty spaces and then inflated.
Properly used bags:
- fill empty spaces
- prevent packages from shifting in the cargo space
- protect against tipping over (e.g. refrigerators)
- fill the gaps between goods, so they do not bump into each other

Properties of staufbags:
- structure allowing for perfect adaptation to the adjacent items
- made from high quality raw materials
- reusable (can be inflated and deflated)
- when not inflated, they take up little space
- resistant to moisture and weather conditions
- the ideal solution to secure cargo during transport
- can be inflated with a hand pump or a compressor with a dedicated nozzle
- excellent shock absorbing properties
- environmentally friendly product, reusable or recyclable
- puncture resistant
- material: outer layer – laminated wrapping paper on PE fabric, weight 70g/m2; inner layer multi-layer co-extruded PA+PE film with a special formula, coextruded film thickness is 75um.
- height: 1600mm
- width: 800mm
- working pressure: 20kPa / 0.2 bar / 2.8 PSI
- maximum pressure 3.0 PSI
- maximum gap size possible to fill: 20cm
- applicable in vans, trailers, containers, warehouses, maritime, air and rail transport.

Wide Range of Sizes

Selecting the appropriate bag size for the cargo is the key to its safety. In the table above, 22 possible bag size combinations are highlighted in blue.

Convenient Inflation System for the Staufbag

Thanks to the new Inflate & Deflate system, the bag can be easily inflated and deflated when needed. The valve equipped with the plug prevents the air from escaping on its own. An additional safety feature is the cap that guarantees the set is airtight. Another plus is the attached handle, which makes it easier to hold the cushion during inflation. After the transport is completed, the air can be quickly released from the cushion by unscrewing the plug, and then it can be reused if necessary!

Inflating the bag is just a few simple steps:
1. Remove the black safety cap
2. Attach the appropriate nozzle to the pump or compressor
3. Grab the handle, place the nozzle onto the valve, and inflate the bag
4. The air from the cushion can be released by unscrewing the plug.

How to Use Staufbags?

For the cushions to fulfill their purpose, they must be arranged in relation to the transported cargo. The diagram above shows examples of poor and proper use of the cushions. There is no golden rule, and each transport requires an individual approach and the application of different solutions.

You can also find bags dedicated to other items and objects in our offer.
It is also possible to produce bags tailored to your product according to depth, length, height or
height and diameter.

Declaration of conformity: https://spacetronik.eu/katalogi/banery/deklaracja-zgodnosci-worki-sztauerskie.pdf
